Machine Shrouds for Industrial Equipment

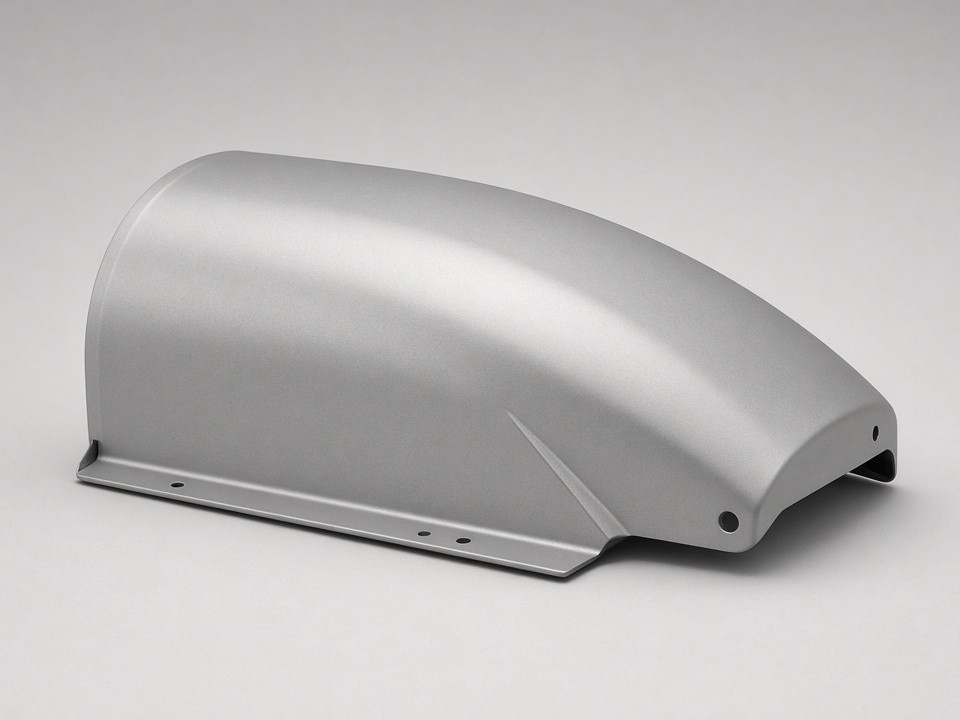

Machine shrouds protect moving parts, contain debris, and support safety compliance on automation lines, CNC machines, and process equipment. They combine flat panels with formed edges, mounting flanges, and access doors while meeting the dimensional needs of the surrounding frame.
Sheet Metal Processes Used for Shrouds
Shrouds start as flat patterns cut on fiber lasers, then move to press brakes for accurate bends. Welded seams join panels where required, followed by hardware insertion and surface preparation. Secondary operations such as tapping, riveting, and powder coating complete the part before final inspection.
-
Step 01
Laser Cutting
Flat patterns cut to profile on fiber lasers.
-
Step 02
Press Brake Bending
Accurate bends for edges, flanges, and returns.
-
Step 03
Welding & Hardware
Seams joined, then hardware insertion and prep.
-
Step 04
Secondary & Finish
Tapping, riveting, powder coating, final inspection.
Manufacturing Capacity at Rapidsheetfab
Our 3,500 m² facility runs five fiber lasers and seven CNC press brakes sized for sheets up to 2000 × 4000 mm. This setup handles the larger panels typical of machine enclosures without splitting work across multiple vendors.
| Process | Max Capacity | Typical Tolerance |
|---|---|---|
| Fiber laser cutting | 2000 × 4000 mm, 25 mm steel | ±0.10 mm |
| CNC press brake | 230 T / 3000 mm | ±0.20–0.30 mm |
| CNC punching | Holes, louvers, forms | ±0.10–0.20 mm |
| Welding & assembly | Full assemblies | Per drawing |
Key Specifications
- Laser cutting tolerance±0.10 mm
- Bending tolerance±0.20–0.30 mm
- Material thickness0.5–12 mm
- Welding methodsTIG, MIG/MAG, laser, spot
Stocked Materials
Stainless grades SUS304, SUS316, and SUS430 are stocked alongside SPCC, Q235, 5052 aluminum, and C1100 copper. Parts leave the shop ready for customer-specified finishes supplied through qualified partners.
From Prototype to Repeat Orders
Customers often begin with one or two shrouds for fit checks. Once approved, the same drawings move into batches of 10–50 units or scheduled releases. This continuity removes the need to requalify a new supplier when volumes increase.
3–12
days lead time for first articles
15–25
days lead time for ongoing production
When Machine Shrouds Need Welding or Hardware
Shrouds that include welded frames, PEM fasteners, or access panels benefit from single-source handling. In-house cutting, bending, and insertion keep hole locations consistent with the weldment, reducing rework at final assembly.
Documentation Supplied With Each Order
- ✓ Dimensional reports
- ✓ Material certificates
- ✓ First-article inspection records
Request a Quote
Send PDF, DXF, or STEP files along with material, finish, and quantity requirements. We review the drawing for manufacturability and return a price and schedule within one business day.
