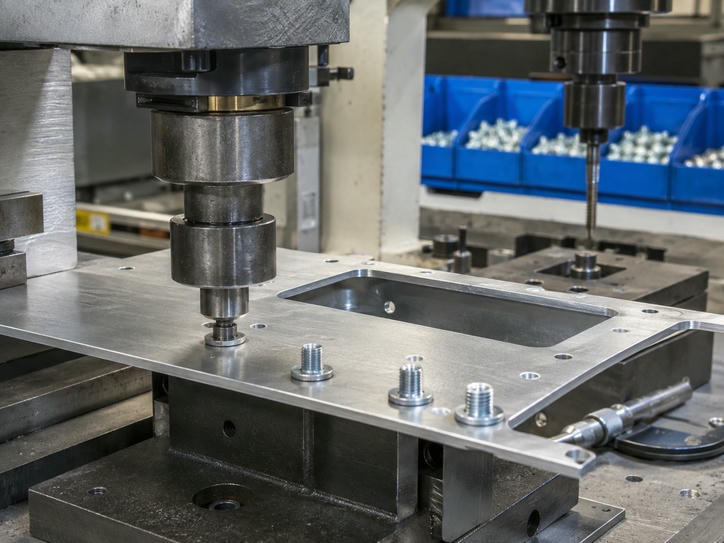

Hardware Insertion / Tapping
Precision Hardware Insertion & Tapping for Industrial OEMs
Hardware Insertion / Tapping is provided as part of Rapidsheetfab's integrated custom sheet metal fabrication workflow for prototype, NPI, low-volume, and repeat production programs.
Integrated Manufacturing Scope
Rapidsheetfab combines fiber laser cutting, CNC punching, precision bending, TIG/MIG/MAG/laser/spot welding, PEM hardware insertion, riveting, M2–M12 tapping, deburring, grinding, brushing, basic polishing, and assembly. The exact route is selected from the drawing, material, thickness, geometry, tolerance, finish, and quantity.
Materials & Thickness Review
- •Stainless steel including SUS304, SUS316, and SUS430
- •SPCC/CRS, Q235/Q355, and galvanized SGCC/SECC steel
- •Aluminum 5052, 6061, and 5754
- •Copper C1100/T2 and brass H62
Typical sheet range from 0.5 to 12 mm, with drawing-specific capability review.
Engineering & DFM Support
The engineering review checks bend access, bend radius, hole-to-edge distance, weld access, hardware clearance, flat-pattern feasibility, datum strategy, cosmetic surfaces, assembly sequence, and inspection points.
Recommendations are made before production when a design change can improve repeatability or reduce avoidable cost.
Quality & Inspection
The quality flow can include IQC, first article inspection, in-process checks, final inspection, and outgoing quality control.
Depending on the order, available records include dimensional reports, material certificates, RoHS/REACH documents, coating reports, and other drawing-defined documentation.
Prototype to Repeat Production
An MOQ of one piece supports prototypes and engineering builds.
Prototype
3–12 days
Small Batch
10–15 days
Regular Production
15–25 days
Final timing is confirmed after drawing and process review.
Surface Finishing
Powder coating, anodizing, plating, passivation, sandblasting, electropolishing, screen printing, and laser marking are available through qualified finishing partners. Finish specifications, color, gloss, masking, appearance, and test requirements should be included in the RFQ.
Information Needed for a Quote
Provide the following details to receive an accurate manufacturing review and quotation.
Drawing Files
PDF drawing plus DXF, STEP, or SolidWorks files when available
Material Specification
Material grade and sheet thickness
Quantities
Prototype and production quantities
Finish Requirements
Finish, color, and cosmetic requirements
Tolerances & Documentation
Critical dimensions, tolerances, and inspection documents
Logistics
Packaging requirements and target delivery
Why Rapidsheetfab
Customers work with Rapidsheetfab for engineering-responsive communication, controlled quality, flexible volume, integrated fabrication processes, and export-ready project support.
Request a Manufacturing Review
Email the drawing package for a practical manufacturing review.
