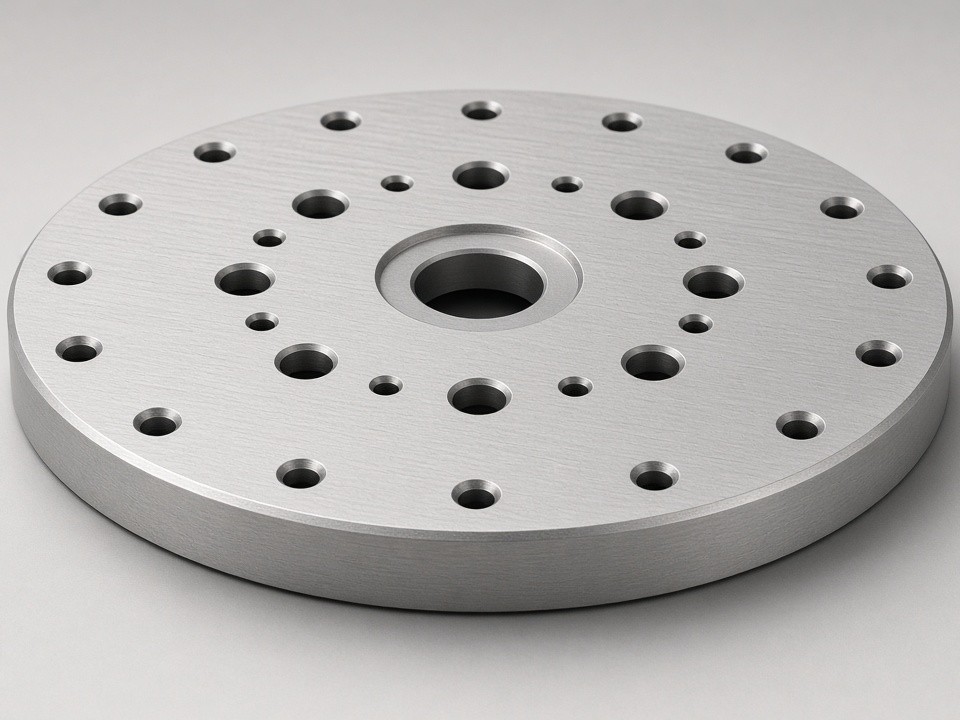

Precision Robot Base Plates: Custom Fabrication for Automation OEMs
Industrial robotics require base plates that provide absolute structural integrity, precise mounting points, and vibration-dampening characteristics. At Rapidsheetfab, we specialize in the fabrication of high-tolerance robot base plates for the automation, robotics, and heavy equipment sectors.
We bridge the gap between rapid prototyping and serialized production, ensuring your components meet rigorous industrial standards from the first NPI build to final assembly.
Manufacturing Capabilities for Heavy-Duty Bases
Robot base plates often require a combination of heavy-gauge material processing and precision secondary operations. Our facility is equipped to handle the full manufacturing lifecycle.
Precision Cutting
Five fiber laser cutters handle carbon steel up to 25 mm and stainless steel up to 20 mm, ensuring clean edges and tight dimensional accuracy for mounting holes.
Heavy-Duty Bending
Seven CNC press brakes with up to 230T capacity allow for the complex forming of stiffening ribs and mounting flanges on thicker gauge plates.
Structural Welding
Our certified welding team executes TIG, MIG/MAG, and laser welding for reinforced frames and base assemblies.
Precision Machining & Hardware
In-house PEM hardware insertion, riveting, and M2–M12 tapping ensure all sensor and robot arm mounting points are perfectly aligned.
Surface Preparation
Deburring, grinding, and brushing, with secondary finishing options including powder coating and plating through our qualified partner network for corrosion resistance in industrial environments.
Technical Specifications & Materials
We work with a variety of materials common in robotics, including high-strength steel (Q235/Q355), stainless steel (SUS304/316), and aluminum alloys (5052/6061).
Our process range covers sheets from 0.5 mm to 12 mm, accommodating both lightweight cobot bases and heavy industrial machinery platforms.
Typical Tolerance Capabilities
- Laser Cutting
- ±0.10 mm
- Bending
- ±0.20–0.30 mm
- Holes & Features
- ±0.10–0.20 mm
Engineering-Responsive Manufacturing
We recognize that robot base plates are rarely just flat pieces of metal; they are critical components of a larger system. Our engineering team conducts a DFM (Design for Manufacturing) review on every RFQ to identify:
- Potential material thickness optimizations to reduce weight without sacrificing rigidity.
- Weldment stress points that may require additional bracing.
- Tolerance stack-up issues that could affect robot arm alignment.
Quality Assurance for Industrial Equipment
As an ISO 9001:2015 certified manufacturer, we provide the documentation necessary for industrial compliance. Our quality flow includes IQC, FAI (First Article Inspection), IPQC, and OQC.
For every project, we provide:
- Dimensional inspection reports (using CMM and 2.5D vision systems).
- Material certificates and RoHS/REACH compliance documentation.
- Coating and finishing reports for critical environmental applications.
Production Lead Times & Export Logistics
Since 2019, Rapidsheetfab has supported OEMs across the US, Europe, and Australia. We understand that project timelines in robotics are critical.
Prototypes
3–12
working days
Small Batches
10–15
days
Repeat Production
15–25
days
We manage the complexities of international shipping and export documentation, allowing you to focus on system integration rather than supply chain logistics.
Request a Quote for Your Robot Base Plates
To receive an accurate engineering review and competitive quote, please provide your CAD files (STEP, DXF, or SolidWorks) along with your project requirements, including:
- Material and thickness specifications.
- Required surface finish or coating.
- Quantity and target delivery dates.
- Any critical tolerances or mounting hole requirements.
Send Your RFQ
Email your CAD files and project requirements to our engineering team for a DFM review and quote.
Email: [email protected]
Address: Sanjiang Industrial Zone, Hengli Town, Dongguan City, Guangdong Province, China
